> >>Platforma cantarire WEFL

Platforme industriale de cantarire cu 4 celule

Informaţii

Producători

Produse noi

Produse vizualizate

Platforma cantarire WEFL Mărește

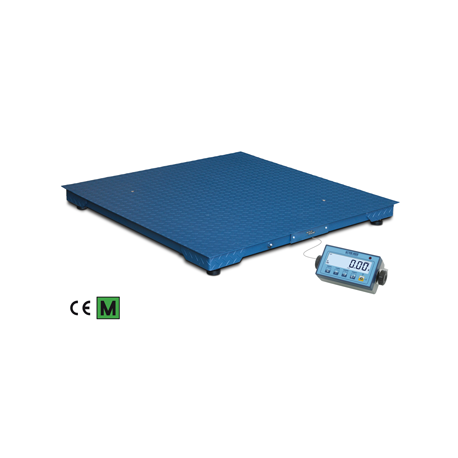

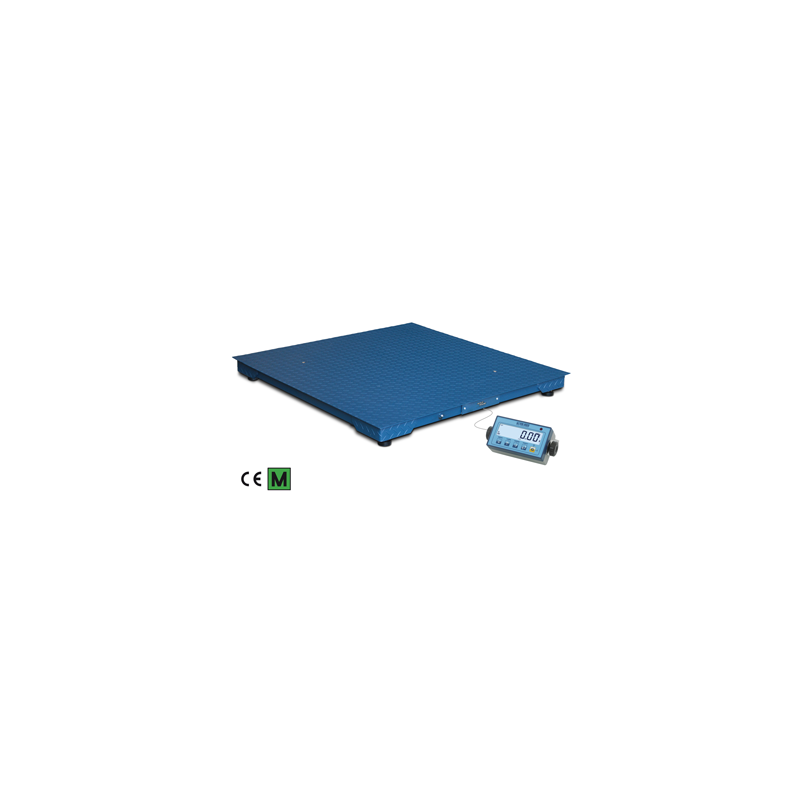

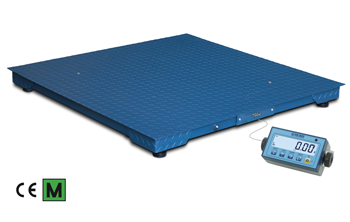

Platforma cantarire WEFL

New product

Platforma cantarire WEFL.

Producator: Dini Argeo.

Cerere oferta

More details

Informații

 TECHNICAL FEATURES
  • Weight indicator with ABS case, 25mm backlit LCD display with 6 high contrast digits and icons for showing the active functions. 5-key functional waterproof keypad.
  • Fitted with fixing bracket with adjustable inclination.
  • Functionining with 4 steel load cells, approved according to OIML R60 C3 standards, IP67 protection degree.
  • Monobloc structure with oven-fire painted steel tubular, adjustable resting feet, and level.
  • Protection reinforcements close to the load cells.
  • Fixed sheet steel chequered load surface, size: see the table.
  • Digital calibration and Set-Up from keypad or from PC through DINITOOLS.
  • Cable 3m long for the connection between platform and indicator.
  • Power supply: 4 AA batteries or 230Vac power supplier.
  • Standard fitted with high resolution calibration for internal use, with 0.03% accuracy of the maximum capacity (activated as standard and disabled by menu).
 SELECTABLE FUNCTIONS
  • Weights totalisation
  • Formulation
  • +/- Check
  • Percentage weigh, for manual dosages
  • Counting
  • Net/Gross or lb/kg conversion

Available versions

Code		 l x w x h
(mm)		 Nr. of cells Max
(kg)		 d
(kg)
2R (kg)*		 d HR
(kg)
WEFLB1500 1250x1250x120 4x1000kg 600/1500 0,2/0,5 0,2/0,5 0,02/0,05
WEFLD3000 1250x1500x120 4x2000kg 1500/3000 0,5/1 0,5/1 0,05/0,1
WEFLE3000 1500x1500x120 4x2000kg 1500/3000 0,5/1 0,5/1 0,05/0,1

(*) These divisions are obtainable only with the relative options.

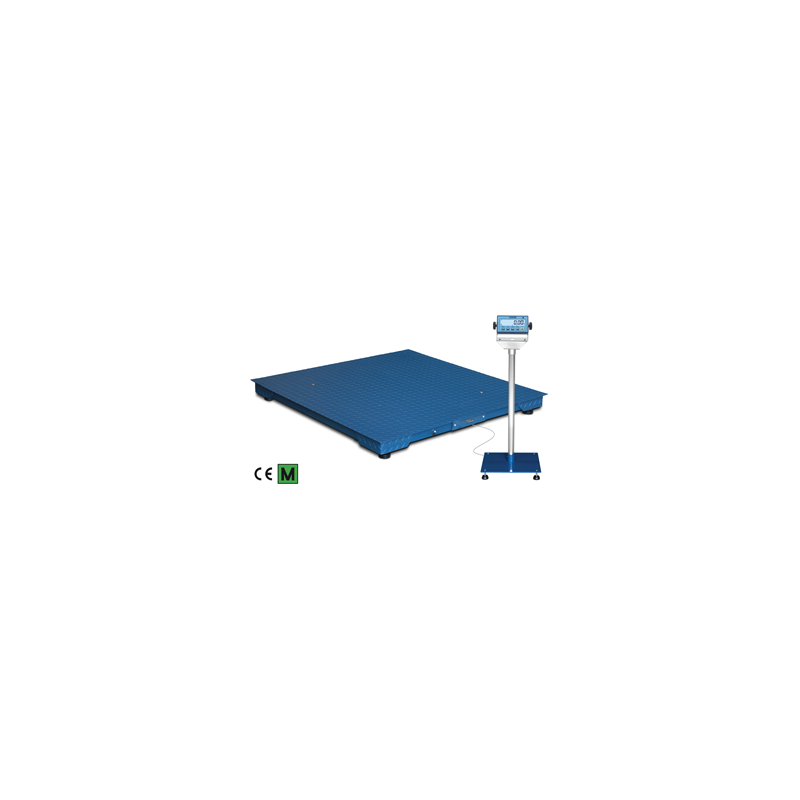

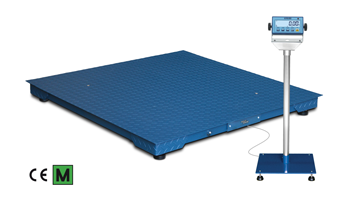

Floor columns
  Code Description
CSP38 Stainless steel column 450x450mm, h=917, Ø 38mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.
CSP38D Stainless steel column 350x350mm, h=750mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.
Approval
  Code Description
ECEM2 CE-M Single platform legal for trade dual range approval.
Calibration service (only at time of order)
  Code Description
CT6 ISO 17025 calibration certificate from 301 to 1500 kg. For precision and industrial scales, crane scales.
CT7 ISO 17025 calibration certificate from 1501 to 3000 kg. For precision and industrial scales, crane scales.

Caracteristici tehnice:

•          Functioneaza cu 4 celule de cantarire de 350Ohm, aprobata in conformitate cu standardele OIML R60 C3 (3000), grad de protectie IP67;

•          Structura monobloc cu metal vopsit, picioare reglabile la nivel;

•          Tabla de otel fiza, suprafata de incarcare este in carouri;

•          Pana la 15Vdc sursa de alimentare;

•          Cablu de conectare de 3 m pentru  conectarea la indicator;

•          La cerere:

o          Servicii de calibrare a platformei cu indicator de greutate;

o          Omologare CE 3000e-M, pentru  a fi combinata mereu la serviciul de calibrare;

o          Coloana de sprijin pentru indicator.
