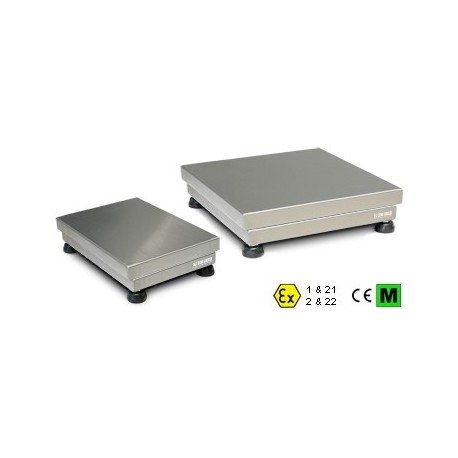

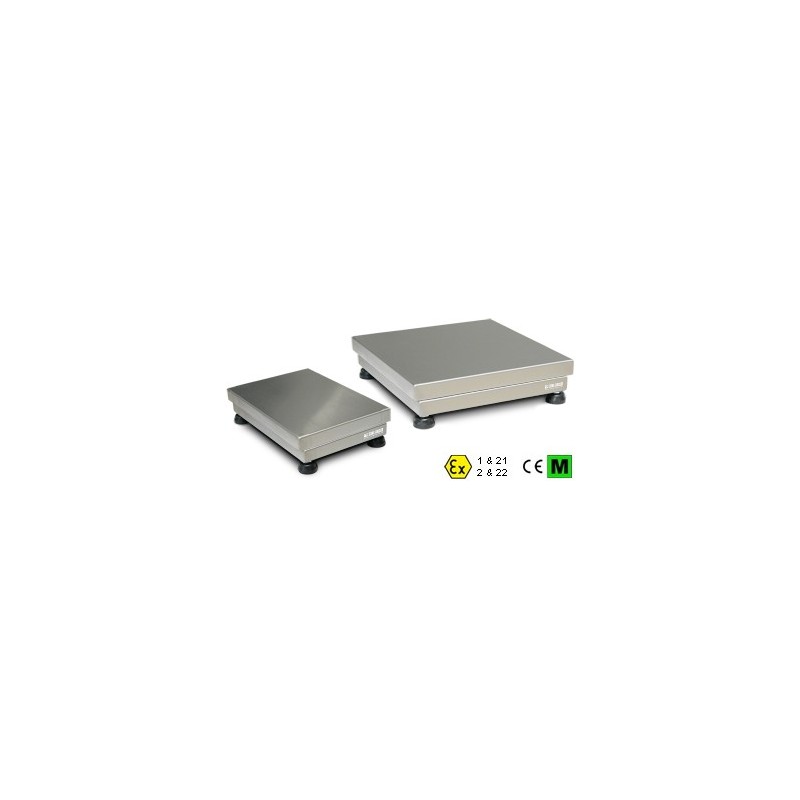

Platforma cantarire TE inox

MAIN FEATURES

Functions with an approved “single point” STAINLESS STEEL load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards. Structure with tubulars, mechanics, trinkets and satined steel loading surface in AISI304 stainless steel. Fitted with adjustable STAINLESS steel feet with plastic resting surface and level. Up to 15 Vdc power supply. Shielded 3m connection cable with connectors for connection to the indicator.

OPTIONS ONLY AVAILABLE AT TIME OF ORDER

Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval. High resolution models for internal factory use.

OPTIONS FOR ATEX VERSION

CCATEX: ATEX certificate for each load cell. DCATEXMECH: Declaration of conformity of the whole system composed of PLATFORM + JUNCTION BOX + LOAD CELLS (only if the platform is ordered without the weight indicator; otherwise, refer to the certifications available for the indicator to which it will be connected).

 (*) These divisions are obtainable only with the relative options.

Calibration service with weight indicator

	Code	Description
	DINICAL1	Calibration service for platform up to 30 kg, connected to Dini Argeo weight indicator - NET PRICE
	DINICAL2	Calibration service for platform from 31 to 1500 kg, connected to Dini Argeo weight indicator - NET PRICE

Legal for trade approval , class III or IIII, with Dini Argeo indicator (only at time of order)

	Code	Description
	ECEM	CE-M Single platform legal for trade approval.
	ECEM2	CE-M Single platform legal for trade dual range approval.

HR calibration (high resolution) with Dini Argeo indicator (only at time of order)

	Code	Description
	THR	High Resolution (HR) model.

IP68 protection

	Code	Description
	TIP68	IP68 connection for single cell platforms, fitted with IP68 connector, for hermetic system.

Options for ATEX version (only at time of order)

	Code	Description
	CCATEX	ATEX certificate for each load cell. Categories: ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga and ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65. Complete with manual and ATEX CE CONFORMITY DECLARATIONS (available in EN, DE, FR and IT).
	DCATEXMECH	Declaration of ATEX conformity of whole, Ex II 2GD X system with relative whole system label, for mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). NOTE: option to order only if the platform is ordered without the indicator. ATEX CONFORMITY DECLARATIONS will be supplied in English.

Support columns for Dini Argeo indicators

	Code	Description
	TCBI350-1	Stainless steel support column h= 350mm with stainless steel fixings, and bracket for DFW, DFWL, DFWLI, 3590E, CPWET, and TRI series weight indicators. NOTE: on the TS platforms it's possible to mount only DFWL, DFWLI and TRI.
	TCBI500-1	Stainless steel support column h= 500mm with stainless steel fixings, and bracket for DFW, DFWL, DFWLI, 3590E, CPWET, and TRI series weight indicators (not compatible with TSE platforms).
	TCBI700-1	Stainless steel support column h= 700mm with stainless steel fixings, and bracket for DFW, DFWL, DFWLI, 3590E, CPWET, and TRI series weight indicators (not compatible with TSE platforms).
	CSP38I-1	Stainless steel column 450x450mm, h=917mm, Ø 38mm. For the indicators of the DINI ARGEO and SCALE HOUSE range.
	CSP38D	Stainless steel column 350x350mm, h=750mm. Painted steel base, for the indicators of the DINI ARGEO and SCALE HOUSE range.

Charts for mobile weighing applications

	Code	Description
	TB60I-1	Stainless steel cart with low supporting surface, for 400x400 mm and 400x500 mm platforms. Height of the loading surface: 260 mm.
	TB300I-1	Stainless steel cart with low supporting surface, for 500x600 mm and 600x600 mm platforms. Height of the loading surface: 270 mm.
	TA60I-1	Stainless steel cart with high supporting surface, for 400x400 mm and 400x500 mm platforms. Height of the loading surface: 640 mm.
	TA300I-1	Stainless steel cart with high supporting surface, for 500x600 mm and 600x600 mm platforms. Height of the loading surface: 650 mm.
	TPBEI	Stainless steel plate for scale or labeller support, for TA or TB carts.

Raising Frame

	Code	Description
	SGAQI-1	Stainless steel raising frame for 400x400mm platforms. Height from ground to platform top: 600 mm (without column)
	SGAXI-1	Stainless steel raising frame for 600x600mm platforms. Height from ground to platform top: 600 mm (without column)

Roller unit

	Code	Description
	RF50X65I	Stainless steel roller unit with PVC ø 40 idle rollers and 75 mm pitch, on stainless steel frame. Dimensions 500x650 mm.

Calibration service with Dini Argeo indicator (only at time of order)

	Code	Description
	CT3	ISO 17025 calibration certificate up to 5 kg. For precision and industrial scales, crane scales.
	CT4	ISO 17025 calibration certificate from 6 to 60 kg. For precision and industrial scales, crane scales.
	CT5	ISO 17025 calibration certificate from 61 to 300 kg. For precision and industrial scales, crane scales.

CARACTERISTICI PRINCIPALE

Funcții cu o celulă  "singur punct" sarcină INOX conform standardelor OIML R60 cu protecție împotriva prafului și a stropilor de apă conform standardelor IP67.
Structura cu elemente tubulare, mecanica, brelocuri și suprafață de încărcare din oțel satinat din oțel inoxidabil AISI304.
Echipat cu picioare reglabile din oțel inoxidabil cu suprafata de odihnă plastic și nivel.
Până la 15 Vdc sursa de alimentare.
Cablu ecranat legătură 3m cu conectori pentru conectarea la indicatorul.

OPȚIUNI DISPONIBILE LA MOMENTUL COMENZII

Conectarea la indicator și calibrare cu CE-M 3000e gamă sau 3000e + 3000e unic de omologare gamă dublu.
Modele de înaltă rezoluție pentru uz intern.

OPȚIUNI PENTRU VERSIUNEA ATEX

CCATEX: certificat ATEX pentru fiecare celulă de sarcină.
DCATEXMECH: Declarație de conformitate a întregului sistem compus din PLATFORMĂ + JUNCTION BOX + CELULE DE SARCINĂ (numai dacă platforma este comandată fără indicator; altfel, vezi certificatele disponibile pentru indicatorul la care va fi conectată).
