MAIN FEATURES

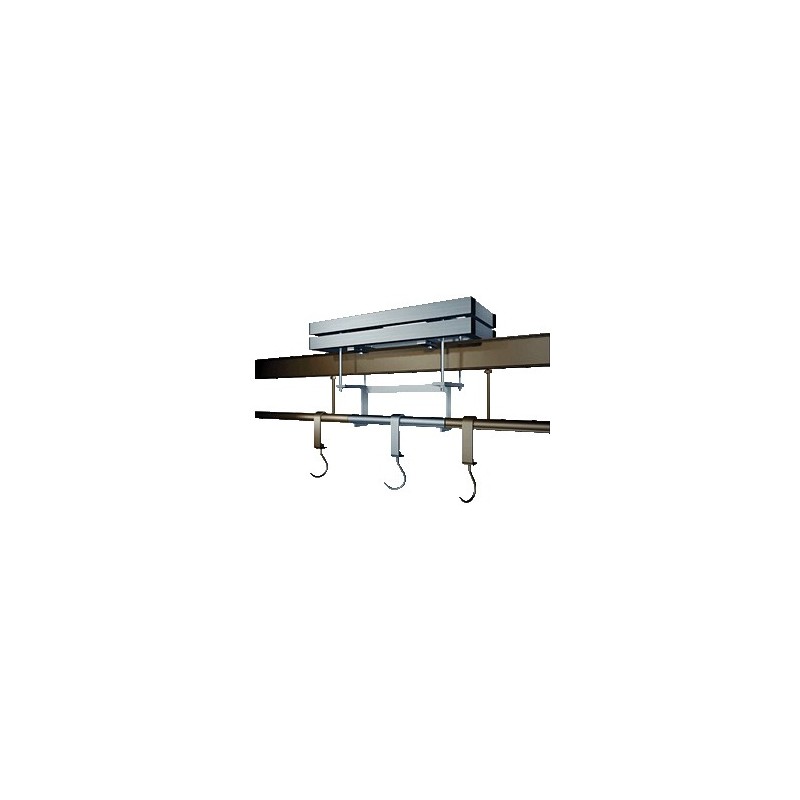

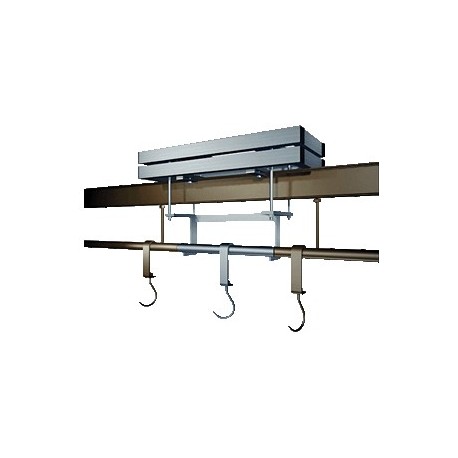

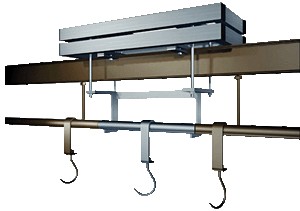

Functions with 1 aluminium load cell with IP66 protection degree (TWSI model) or with 3 STAINLESS STEEL load cells with IP68 protection degree (TWI model), approved according to OIMLR60 C3 standards (3000 + 3000 divisions).
AISI304 STAINLESS STEEL tubular structure, fitted with accessories for fastening to the beam and threaded rods for fastening to the customer’s track section.
Up to 15 Vdc power supply.
Hermetic junction box and shielded 10m long 6-pin cable fitted with connectors for connection to the weight indicator.

OPTIONS ONLY AVAILABLE AT TIME OF ORDER

Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval (with our indicators).
Models with special sizes and capacities (ask for estimate).
Possible adaptations with customer’s track section (to be supplied per account of manufacture), which will be quantified upon job card cost account.

Available versions

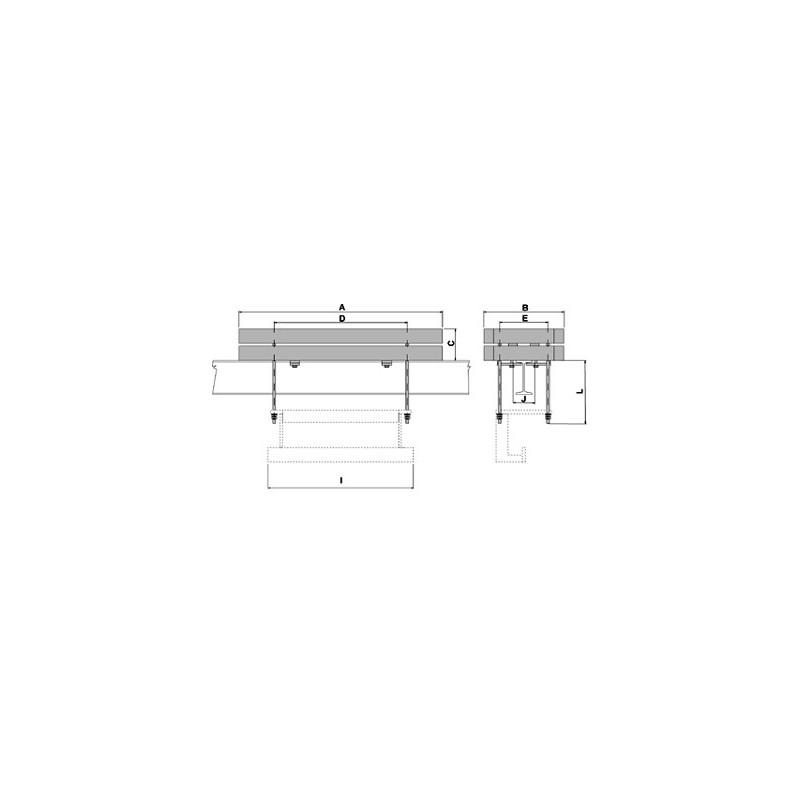

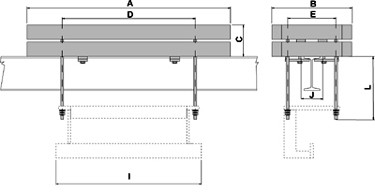

Code	l (mm)	Nr. of cells	Max (kg)	d (g)	CE-M* 3000e (g)	CE-M* 2x3000e (g)
TWSI15	300	1x300kg	150	50	50	20-50
TWSI30	300	1x500kg	300	100	100	50-100
TWI30	600	3x300kg	300	100	100	–
TWI60	600	3x500kg	600	200	200	100-200

(*) These divisions are obtainable only with the relative options.

NOTE:
– The track section to be applied to the scale and relative fastening to the threaded rods must be realized by the customer.
– The order and the eventual adaptation of the scale are possible only upon verification of the compatibility with the customer’s track section (executed by our technicians when the specific FILLED-IN MODULE is sent).

Calibration service with weight indicator

	Code	Description
	DINICAL2	Calibration from 31 to 1500kg with Dini Argeo indicator. NET PRICE.

Legal for trade approval , class III or IIII, with Dini Argeo indicator (only at time of order)

	Code	Description
	ECEM	CE-M Single platform legal for trade approval.
	ECEM2	CE-M Single platform legal for trade dual range approval.

Protection for junction box/electronic circuits

	Code	Description
	GELBOX	Anti condensation, insulating, and sealing gel. Useful for the protection of the electronic circuits of the weighing system, even in conditions of prolonged immersions in time. Pack of 300ml.

Calibration service with Dini Argeo indicator (only at time of order)

	Code	Description
	CT5	ISO 17025 calibration certificate from 61 to 300 kg. For precision and industrial scales, crane scales.
	CT6	ISO 17025 calibration certificate from 301 to 1500 kg. For precision and industrial scales, crane scales.

.

Detalii:

Platforma cantarire TW

Platforma cantarie TW.

Producator: Dini Argeo.

Documentație

Platforma cantarie TW Platforma cantarie TW

Categorie: Platforme mici de cantarire

Descriere
Recenzii (0)

Descriere

Code	l (mm)	Nr. of cells	Max (kg)	d (g)	CE-M* 3000e (g)	CE-M* 2x3000e (g)
TWSI15	300	1x300kg	150	50	50	20-50
TWSI30	300	1x500kg	300	100	100	50-100
TWI30	600	3x300kg	300	100	100	–
TWI60	600	3x500kg	600	200	200	100-200

	Code	Description
	DINICAL2	Calibration from 31 to 1500kg with Dini Argeo indicator. NET PRICE.

	Code	Description
	ECEM	CE-M Single platform legal for trade approval.
	ECEM2	CE-M Single platform legal for trade dual range approval.

	Code	Description
	GELBOX	Anti condensation, insulating, and sealing gel. Useful for the protection of the electronic circuits of the weighing system, even in conditions of prolonged immersions in time. Pack of 300ml.

	Code	Description
	CT5	ISO 17025 calibration certificate from 61 to 300 kg. For precision and industrial scales, crane scales.
	CT6	ISO 17025 calibration certificate from 301 to 1500 kg. For precision and industrial scales, crane scales.
