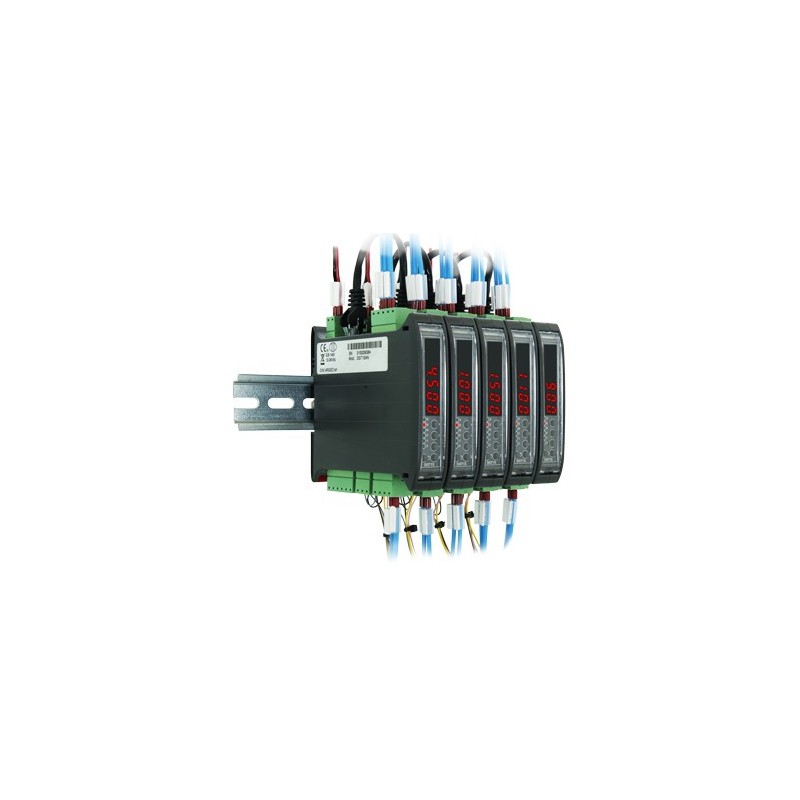

Indicator Cantarire DGT1S Mărește

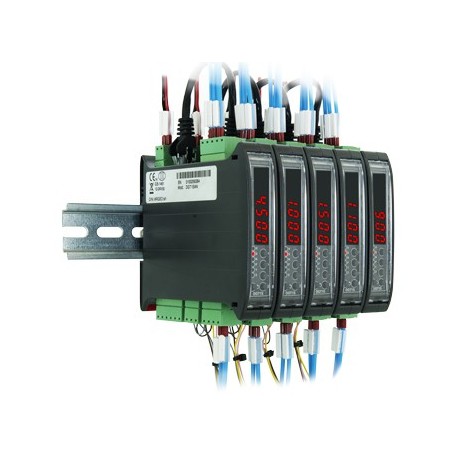

Indicator Cantarire DGT1S

New product

Indicator Cantarire DGT1S, indicator de greutate transmitator multifunctional digital.

Producator: Dini Argeo.

Cerere oferta

More details

Informații

.

 MAIN FEATURES
  • Easy to use 5-key waterproof keyboard.
  • Red LED display with 6 8-mm digits and 6 LEDs for showing active functions.
  • Standard dimensions for mounting on DIN bar.
  • Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS.
  • Up to 10.000e or multirange 2 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.
  • Up to 100.000 displayable divisions with internal resolution up to 3.000.000 points.
  • Up to 8 signal linearization points with DINITOOLS (3 from keypad).
  • 1 channel A/D 24-bit sigma-delta conversion, up to 3200 conv./sec. autoselect.
  • Connectable with up to 16 analogue load cells with 350 Ohm input resistance.
  • From 12 Vdc to 24 Vdc power supply.
 MAIN CERTIFICATIONS
  • EC Type Approval (EN45501)
  • OIML R76
  • OIML R61 - MID
 TRANSMITTER / INDICATOR: FUNCTIONS
  • KEYBOARD:
    Fast calibration; theoretical calibration; weighing filter configuration; zeroing; Semi automatic and presettable tare, print and/or data transmission; ON/Stand-by.

  • SELECTABLE:
    High Resolution Weighing x 10; Net/Gross or lb/kg conversion; Weighs totalisation; Setpoint; Approved transmission of the weight to PC/PLC (with ALMEM Alibi memory option); Counting; Hold e Peak.

  • SERIAL PORTS:
    Reading of the net, gross, and tare weights; Clearing; Semi automatic and presettable tare; Scale switch; Setting of outputs activation thresholds; Reading/Writing of Alibi Memory.
    Reading of microvolts or ADC converter for all the channels; Message display; Printing; Setting of APW in counting mode; Simulation of key pressure; MODBUS serial protocol.

  • 16 bit ANALOGUE OUTPUT on DGT1SAN:
    Analogue output proportional to the net or gross weight, either positive (in loading) or negative (in unloading).
 MASTER/REPEATER OPTION (MSTSLV code)
  • Specific programme for use of the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW.

    FUNCTIONING MODES:
  • Multi-scale repeater (MASTER)
    function which allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.
  • UNIVERSAL weight repeater
    function which allows to repeat the weight of any scales, through the configuration of the input string.

  • Click to learn more.
Available versions
  Code Description
DGT1S Weight transmitter on DIN bar, with 2 INPUTS and 2 OUTPUTS. Fitted with 5-key keypad and LED display. Multifunction weighing program.
DGT1SAN Weight transmitter on DIN bar, with 2 INPUT, 2 OUTPUT and analog output. Fitted with 5-key keypad and LED display. Multifunction weighing program.
Legal for trade approval
  Code Description
KCEM Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination to a Dini Argeo indicator.
Storing the weighs (only at time of order)
  Code Description
SWM WeiMonitor PC program for monitoring and recording weighs in real time, from one or more scales.
Printers/Labellers
  Code Description
TPRP Thermal printer for panel mounting. Fitted with connection cable, 5V power supply (power adapter not included).
TPRPCAL 5V power supplier for TPRP printer.
Communication Interfaces
  Code Description
ALMEM (S1) Alibi memory (fiscal memory, max 120.000 weighs) for approved transmission of the weight to PC/PLC or data recording on MMC/USB. Real time clock integrated for print of the date/time.
PROFIBUS1S RS485 / Profibus compact converter, for DIN bar.
ETH1S RS485 / Ethernet compact converter for DIN bar.
Date&Time option
  Code Description
DFCLK (S1) Real time clock for printing/displaying of the date and time.
Power supplier for DIN bar
  Code Description
DR1512 12Vdc power supplier for DIN bar. 110/240Vac input.
Options for ATEX version
  Code Description
KMB4 Kit of 3 passive safety ATEX zener barriers in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in an hazardous area. Marking of the single barrier: ATEX II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Marking of the whole box with three Zener barriers: ATEX II 3G Ex nA II T4 IP65 (-20°C ≤ Ta ≤ +40°C).
DCATEXMB4 Declaration of ATEX conformity of the whole, Ex II 2GD IIC T6 T125°C X system, with relative label of whole system, for weight indicator connected to Dini Argeo zener barriers, connected to mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). ATEX CONFORMITY DECLARATIONS will be supplied in English.
Weight repeater software
  Code Description
MSTSLV Program for using the indicator as a repeater. It must be combined with the DFW and DGT weight indicators.

.
