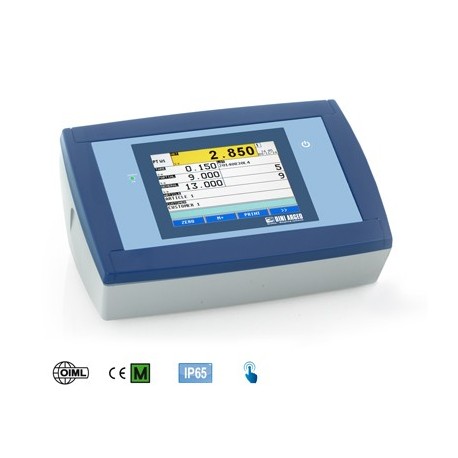

Indicator Cantarire 3590ET Touch

New product

Indicator  de greutate  3590ET Touch Screen pentru aplicații industriale.

Producator: Dini Argeo.

Cerere oferta

More details

Informații

MAIN FEATURES
  • Backlit graphic display with touch screen technology, lxh= 120x90mm size. Screens completely customizables.
  • Multilanguage software.
  • QWERTY, AZERTY o QWERTZ keyboard, selectable.
  • ABS waterproof enclosure, with new IP65 protection system.
  • Dimensions: 278x125x186 mm.
  • Suitable for use on the table, column, or wall.
  • Real time clock and permanent data storage.
  • Fitted alibi memory, integrated on the motherboard.
  • Slot for built-in micro SD for recording logos (upon request).
  • Functions available with DINITOOLS utility
    - Configuration, data entry and print formatting.
    - Recording and filing of all the information on PC.
    - Complete retrieval of the configuration.
    - Instrument calibration with numeric values.
    - Customization of the screens.
  • 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
  • 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
  • Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).
  • Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade.
  • Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
  • Connectable to printers and labellers with free programmation of the printout formats.
  • 110-240 Vac power supply.
 MAIN CERTIFICATIONS
  • EC Type Approval (EN45501)
  • OIML R76
  • OIML R51 - MID
  • OIML R134 (AF09)
 APPLICATION SOFTWARE
  • AF01: Totalization and formula weighing (integrated)
  • AF02: Pieces/quantity counting (optional)
  • AF03: Weighbridges - Input/Output vehicle (optional)
  • AF04: Statistical checking of prepackaged goods (optional)
  • AF05: Price compunting and industrial labelling (optional)
  • AF08: Management of wheel and axle weighing systems (optional)
  • BATCH1: Single product dosage systems in loading and unloading (optional)
 CUSTOMISED APPLICATIONS
Thanks to our integrated development, you can create complete customised applications in autonomy:

  • wizards, operator messages
  • serial port management, protocols customization
  • digital I/O full management
  • sequential or simultaneous automations
  • data entry, custom archives

Dini Argeo can offer the service of custom development programs.
Available versions
  Code Description
3590ET Touch screen indicator with AF01 software. ABS enclosure. Colour Display.

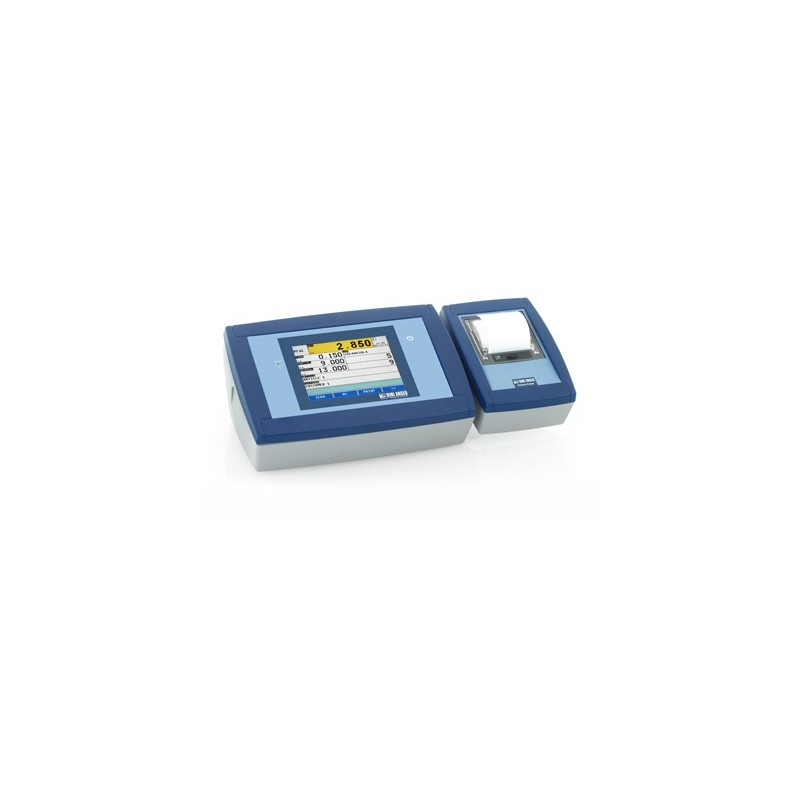

3590ETP Touch screen indicator with AF01 software with attached printer. ABS enclosure. Colour Display.
Available firmwares
  Code Description
AF02 Software for pieces/quantity counting.
AF03 Software for weighbridges, input/output vehicle.
AF04 Software for statistical checking of prepackaged goods.
AF05 Software for price compunting and industrial labelling.
AF08 Software for static wheel and axle weighing with 2 or various platforms.
BATCH1 Software for single product dosage systems in loading and unloading.

Optional power supply cords

  Code Description
PWCORDUK Power supply cord with BS1363 plug (UK plug).

Junction Box / Boards - Cell cables

  Code Description
LCCBC (S1) Cable for connection between platform and indicator, l=50cm. Female connector to be soldered.
LCCB5C (S1) LCCBC cable + 5m extension cable.
LCCB10C (S1) LCCBC cable + 10m extension cable.

Legal for trade approval

  Code Description
KCEM Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination to a Dini Argeo indicator.

Storing the weighs (only at time of order)

  Code Description
USBC (S2) Built-in USB port kit for data storing on USB key. Fitted with USB key for PC.
USBK Set of 5 USB keys for recording the weighs.
SWM WeiMonitor PC program for monitoring and recording weighs in real time, from one or more scales.

Printers/Labellers

  Code Description
PR80 (S2) Thermal printer with print cutter.
LP542S (S2) Direct termal labeller.
LP542TT (S2) Thermal transfer or direct termal labeller. Peel-off kit in option.
LPRPK (S1) Peel-off kit for LP542TT (installation by customer).
SMTPLUSPRO (S2) Thermal transfer or direct termal labeller. Peel-off kit in option.
SMTRPK (S2) Label peel-off and rewind kit for SMTPLUS labeller.
RSCBLP (S1) RS232 cable l=1,5m for LP542xx, SMTPLUS, PR80 printers.
LX300PRO (S2) Dot matrix impact printer.
TM295 (S2) Dot matrix impact printer.
RSCBLX (S1) RS232 cable l=1,5m for LX300, TM295 printers.
PRNSERV Custom-made ticket (up to 4 layouts). NET price. For OBTPR../OBMMC/OBMDP/TM295/LX300 printer.
APRNSERV Custom-made label (up to 4 layouts). NET price. For LP542S/SMTPLUS labellers.

Display customization

  Code Description
GTMEM 10 memories set for display customization with logos and images.

Communication Interfaces

  Code Description
RSCBUSBPG (S1) USB PC/RS232 converter cable, l=1,5m, with PG9. USB/RJ45 connector. For the connection to weight indicators with IP65 and IP68 protection system.
OBRF-2 (S2) External 868 MHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 70m indoors, 150m outdoors. 50 configurable channels.
OBRFUSB-2 (S2) External 868 MHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 70m indoors, 150m outdoors. 50 configurable channels. (OBRFUSB-1 must be combined with another radio module).
RFITR-1 (S2) Built-in 868 MHz radiofrequency module. Max. functioning distance in appropriate environmental and installation conditions: 70m indoors, 150m outdoors. Up to 50 configurable channels.
WIFITD (S2) Built-in WI-FI interface. For wireless connection (through access point) to the company computer system.
ETHD (S2) Built-in Ethernet interface. Speed from 10 to 100 Mbps, TCP, UDP, IP, ARP, ICMP, Ethernet Mac protocols.
SETHNET External RS232/Ethernet interface. Suitable for creating multi-operator weighbridge systems in a network. Compatible only with the AF03 software.
PROFI232-1 External RS232/RS485/PROFIBUS interface for DIN bar. Connectable to the indicators with Profibus protocol.
USBMB (S1) Built-in USB interface, for PC (cable gland excluded). Mounting as an alternative of the standard connector RJ.
BLTH (S1) Built-in bluetooth interface. For wireless connection to the portable PC or PDA. Weighing app downloadable from Google Play.
RS485C (S1) Built-in RS485 interface (mounting and cable gland excluded).
RS485OPTO (S1) Built-in optoisolated RS485 interface (mounting, cable gland excluded).
PG9P 10 PG9 ABS cable gland set for weight indicators.

Connection cables

  Code Description
RSCBRJ (S1) RS232/C serial cable - DB9/RJ45 - l=1,5m.
RSCBRJ10M (S1) RS232/C serial cable - DB9/RJ45 - l=10m.
USBCABMB USB/miniUSB PC cable l=1m (for USBMB option).

Digital Input/Output

  Code Description
C2IN (S1) Set of 2 optoisolated input (mounting and cable gland excluded).
C4OUT (S1) Set of 4 optoisolated output (mounting and cable gland excluded).
PG9P 10 PG9 ABS cable gland set for weight indicators.

Weight repeaters

  Code Description
DGT100R (S2) Weight repeater with 100mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure.

Columns, supports brackets, visors

  Code Description
CSP38I-1 Stainless steel column 450x450mm, h=917mm, Ø 38mm. For the indicators of the DINI ARGEO and SCALE HOUSE range.
STFI-1 Stainless steel fixing bracket. For mounting the weight indicator on wall.
STFR Stainless steel fixing bracket with adjustable inclination. For mounting the weight indicator on wall.
KWR10 Kit of 4 rubber wheels and galvanized steel frame for CSP column. A pair of idler wheels and a pair with brakes.

Options for ATEX version

  Code Description
DCATEXMB4 Declaration of ATEX conformity of the whole, Ex II 2GD IIC T6 T125°C X system, with relative label of whole system, for weight indicator connected to Dini Argeo zener barriers, connected to mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). ATEX CONFORMITY DECLARATIONS will be supplied in English.
KMB4 Kit of 3 passive safety ATEX zener barriers in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in an hazardous area. Marking of the single barrier: ATEX II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Marking of the whole box with three Zener barriers: ATEX II 3G Ex nA II T4 IP65 (-20°C ≤ Ta ≤ +40°C).
JB4QA ABS IP67, ATEX, equalisation box for up to 4 cells. 4 + 1 fairleads. Protection modes: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dusts. Complete with manual and ATEX CE CONFORMITY DECLARATIONS (available in EN, DE, FR and IT).
JB4QAI Stainless steel IP66, ATEX, equalisation box for up to 4 cells. 4 + 1 fairleads. Protection modes: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dusts. Complete with manual and ATEX CE CONFORMITY DECLARATIONS (available in EN, DE, FR and IT).
EXCB6 Shielded, blue, 6x0,25mmq signal cable, for EX i whole. €/m

PC keyboard / Scanner / Connection cables

  Code Description
KBCBCE (S1) PC keyboard or barcode reader cable with MINI DIN connector.
PCKBRD QWERTY PC keyboard (it needs a mini DIN cable).
SCCDR2 Bar code scanner (it needs a mini DIN cable). Compatible with UPC/EAN, Code 39, 39 Full ASCII, 128 and others. Reading depth: 3-6 cm (resolution 0.076 mm), 3-25 cm (resolution 0.3 mm).

Protection against electric discharges

  Code Description
3590EEP (S2) Built-in protection card against electric discharges according to IEC 1000-4-5/D (IEC 801-5/D).

Keyboard protection cover

  Code Description
CVRXP Kit of 10 moulded protective covers in transparent plastic. For indicator DFWXP or 3590EXP with ABS case.

Remote control

  Code Description
TLR-1 (S2) Radio frequency remote control and receiver. 433MHz, with 6 key, for use up to 50 m of distance, in appropriate environmental conditions.
