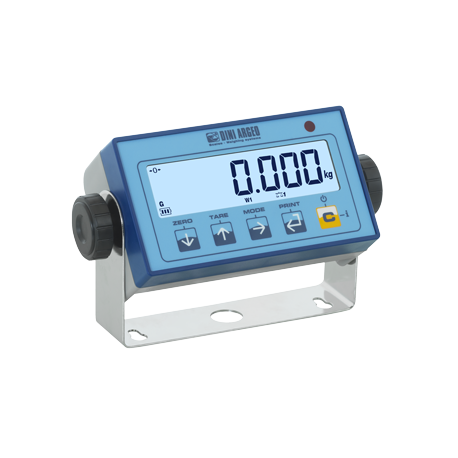

Indicator Cantarire DFWLB Mărește

Indicator Cantarire DFWLB

New product

Indicator Cantarire DFWLB, multifunctional  IP68 greutate indicator pentru industrie.

Producator: Dini Argeo.

Cerere oferta

More details

Informații

.

MAIN FEATURES
  • 5-key functional waterproof keypad.
  • Backlit 25mm LCD display with 6 high contrast digits with icons for showing the active functions.
  • Easy to clean ABS IP68 case, resistant to harsh and corrosive environments.
  • Suitable for use on the table, column, or wall.
  • Fitted with fixing bracket with adjustable inclination.
  • A/D 24 bit, 4 channel converter, max. 200 conv./sec. autoselect, and up to 8 signal linearisation points.
  • Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved versions for legal for trade use.
  • Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
  • Connection with up to 8 load cells with input resistance equal to 350 Ohm or up to 16 cells of 700 Ohm each.
  • Digital calibration and Set-Up from keypad or from PC through DINITOOLS.
  • Power supply through built-in rechargeable battery, with 60h operating time, and fitted with external 12Vdc battery charger.
 MAIN CERTIFICATIONS
  • EC Type Approval (EN45501)
  • OIML R76
 FUNCTIONS
  • MAIN FUNCTIONS:
    - Zeroing
    - Automatic tare
    - Presettable tare
    - Printing in 1, 2 or 3 copies
    - Data transmission to PC.

  • OPERATING MODES:
    - High Resolution Weighing x 10
    - Net/Gross or lb/kg conversion
    - Accumulation
    - Formula weighing
    - +/- Checkweighing
    - Percentage weighing
    - Approved transmission of the weight to PC/PLC or data recording on MMC/USB (with Alibi memory ALMEM option)
    - Counting
    - In/Out Truck weighing
    - Hold and Peak.
 I/O SECTION
  • RS232/C bidirectional port on RJ connector for quick connection (optional RS485) on screw terminal, configurable for PC, PLC, or additional remote display.
  • RS232/C bidirectional port configurable for connection to printer or labeller.
Available versions
  Code Description
DFWLB-1 IP68 weight indicator with built‐in rechargeable battery. ABS case, 5‐key keypad, backlit LCD display.
Approval
  Code Description
KCEM Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination to a Dini Argeo indicator.
Junction Box / Boards - Cell cables
  Code Description
LCCBC (S1) Cable for connection between platform and indicator, l=50cm. Female connector to be soldered.
LCCB5C (S1) LCCBC cable + 5m extension cable.
LCCB10C (S1) LCCBC cable + 10m extension cable.
Storing the weighs (only at time of order)
  Code Description
SWM WeiMonitor PC program for monitoring and recording weighs in real time, from one or more scales.
Printers/Labellers
  Code Description
OBTPRB (S2) Thermal printer in table version. For weight indicator, with ABS case, 1,5 m connection cable and internal power adapter.
LP542S (S2) Direct termal labeller.
LP542TT (S2) Thermal transfer or direct termal labeller. Peel-off kit in option.
SMTPLUSPRO (S2) Thermal transfer or direct termal labeller. Peel-off kit in option.
RSCBLP (S1) RS232 cable l=1,5m for LP542xx, SMTPLUS, PR80 printers.
CNFSERV Custom-made printouts for DFW and DFWL series. NET price.
Communication Interfaces
  Code Description
RSCBUSBPG (S1) USB PC/RS232 converter cable, l=1,5m, with PG9. USB/RJ45 connector. For the connection to weight indicators with IP65 and IP68 protection system.
USBMB (S1) Built-in USB interface, for PC (cable gland excluded). Mounting as an alternative of the standard connector RJ.
BLTH (S1) Built-in bluetooth interface. For wireless connection to the portable PC or PDA. Weighing app downloadable from Google Play.
ALMEM (S1) Alibi memory (fiscal memory, max 120.000 weighs) for approved transmission of the weight to PC/PLC or data recording on MMC/USB. Real time clock integrated for print of the date/time.
RS485C (S1) Built-in RS485 interface (mounting and cable gland excluded).
Connection cables
  Code Description
RSCBRJ (S1) RS232/C serial cable - DB9/RJ45 - l=1,5m.
RSCBRJ10M (S1) RS232/C serial cable - DB9/RJ45 - l=10m.
USBCABMB USB/miniUSB PC cable l=1m (for USBMB option).
Date&Time option
  Code Description
DFCLK (S1) Real time clock for printing/displaying of the date and time.
Columns, supports brackets, visors
  Code Description
CSP38I-1 Stainless steel column 450x450mm, h=917mm, Ø 38mm. For the indicators of the DINI ARGEO and SCALE HOUSE range.
CSP38D Stainless steel column 350x350mm, h=750mm. Painted steel base, for the indicators of the DINI ARGEO and SCALE HOUSE range.
KWR10 Kit of 4 rubber wheels and galvanized steel frame for CSP column. A pair of idler wheels and a pair with brakes.
Weight repeaters
  Code Description
DGT100R (S2) Weight repeater with 100mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure.
Remote control
  Code Description
DFTL12-1 (S1) 19-keys remote control and infrared receiver kit (max 8m).
Weight repeater software
  Code Description
MSTSLV Program for using the indicator as a repeater. It must be combined with the DFW and DGT weight indicators.
Options for ATEX version
  Code Description
DCATEXMB4 Declaration of ATEX conformity of the whole, Ex II 2GD IIC T6 T125°C X system, with relative label of whole system, for weight indicator connected to Dini Argeo zener barriers, connected to mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). ATEX CONFORMITY DECLARATIONS will be supplied in English.
KMB4 Kit of 3 passive safety ATEX zener barriers in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in an hazardous area. Marking of the single barrier: ATEX II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Marking of the whole box with three Zener barriers: ATEX II 3G Ex nA II T4 IP65 (-20°C ≤ Ta ≤ +40°C).
JB4QA ABS IP67, ATEX, equalisation box for up to 4 cells. 4 + 1 fairleads. Protection modes: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dusts. Complete with manual and ATEX CE CONFORMITY DECLARATIONS (available in EN, DE, FR and IT).
JB4QAI Stainless steel IP66, ATEX, equalisation box for up to 4 cells. 4 + 1 fairleads. Protection modes: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dusts. Complete with manual and ATEX CE CONFORMITY DECLARATIONS (available in EN, DE, FR and IT).
EXCB6 Shielded, blue, 6x0,25mmq signal cable, for EX i whole. €/m

.
