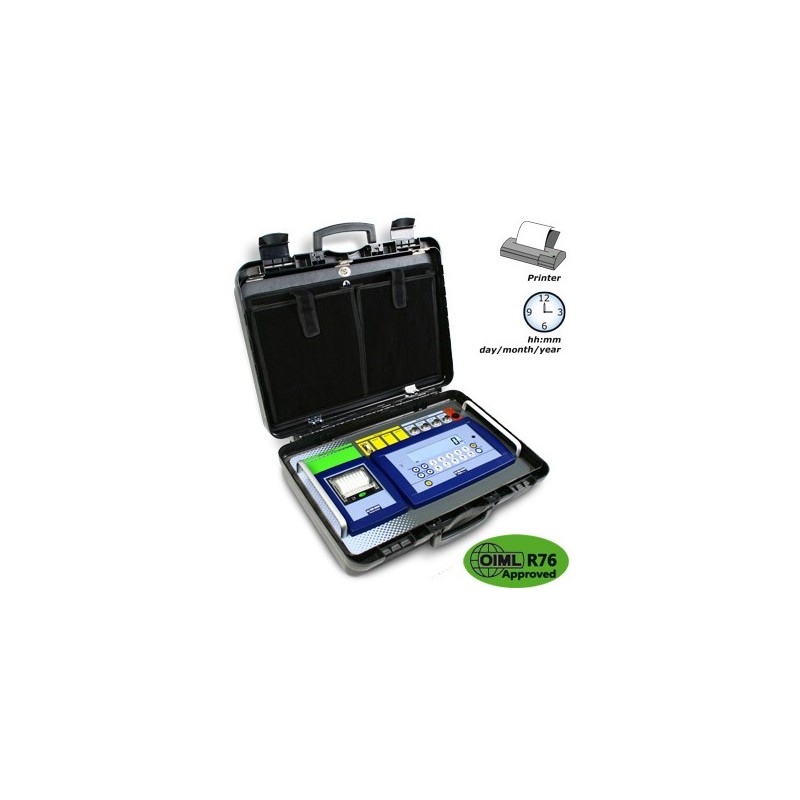

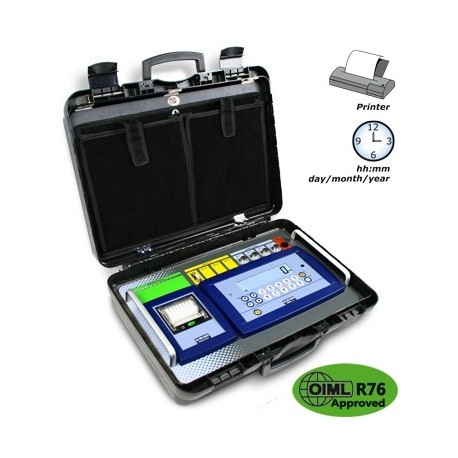

Indicator Cantarire DFWKRP

New product

Indicator Cantarire DFWKRP, indicator pentru cântărire a vehiculelor.

Producator: Dini Argeo.

Cerere oferta

More details

Informații

.

MAIN FEATURES
  • Waterproof functional keyboard with 17 keys.
  • LCD backlit display with 6 25-mm high contrast digits and with indication of active functions.
  • Rack type metallic case.
  • Calibration, set-up parameters, printouts, etc., all configurable from keyboard.
  • Instrument management & configuration from PC with DINITOOLS.
  • Up to 10.000e in single range mode @ 0,3 µV/d in CE-M approved version for legal for trade use.
  • Up to 800,000 displayable divisions with internal resolution up to 3.000.000 points.
  • A/D 24-bit 4-channel sigma-delta conversion, up to 200 conv./sec. autoselect and up to 8 signal linearization points.
  • Fitted with 4 connectors for connection to 4 platforms (up to 8 optional).
  • Connectable with up to 8 analogue load cells having 350 Ohm input resistance.
  • Built-in rechargeable battery (10-hour minimum operating time, recharge in 8 hours) with fitted external 12 Vdc / 230 Vac adapter.
  • Fitted with thermal printer, time/date, case for housing indicator and with space for other accessories.
  • Dimensions: 325x460x170 mm; Total weight: about 5 kg.
 MAIN CERTIFICATIONS
  • EC Type Approval (EN45501)
  • OIML R76
 I/O SECTION
  • Available on the panel:
    - 1 RS232/C (or optionally RS485) bi-directional 9-pin port for PC.
  • Available in the indicator:
    - 1 RS232/C port configurable for connection with printer.
 WIRELESS WHEEL/AXLE WEIGHING SYSTEMS
  • Thanks to the DFWKRPRF repeater combined with the "MSTSLV" optional software, it is possible to manage up to 20 WWSRF platforms fitted with built-in radio module, with recording of the weight of each wheel and calculation of the vehicle total weight.
 APPROVAL WITH CE-M SERIES PLATFORM
  • The weight of the single platform is legal for trade.
  • The total weight of the vehicle is legal for trade depending on the application:
    - The wheel weighing systems, with a number of platforms equal to the number of vehicle's wheels, are approved, because the weight of the vehicle is determined in only one weigh.
    - The axle weighing systems are for internal use only.
  • The CE-M division in which the total weight of the vehicle is indicated in the wheels weighing systems (4 platforms) is equal to the sum of the single platforms’ divisions, rounded.
    Example: with 4 approved platforms with division 200g, the approved sum weight will be indicated with division 1kg.
Available versions
  Code Description
DFWKRP Indicator with transport case and integrated printer. Fitted with specific programme for vehicle weighing, 17-key keypad, backlit display and time/date.
DFWKRPRF-2 Indicator with transport case and printer for WWS RF wireless platforms. 17-key keypad, LCD backlit display, time/date, 868MHz radio frequency module and dedicated program.
Storing the weighs (only at time of order)
  Code Description
USBCKR (S2) Built-in USB port kit for indicator in transport case complete of USB key for PC.
USBK Set of 5 USB keys for recording the weighs.
SWM WeiMonitor PC program for monitoring and recording weighs in real time, from one or more scales.
Legal for trade approval
  Code Description
KCEM Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination to a Dini Argeo indicator.
Printers/Labellers
  Code Description
CNFSERV Custom-made printouts for DFW and DFWL series. NET price.
Communication Interfaces
  Code Description
DFIO (S1) Built-in 2 IN / 2 OUT interface (not combinable with ALMEM).
USBMB (S1) Built-in USB interface, for PC (cable gland excluded). Mounting as an alternative of the standard connector RJ.
WIFITD (S2) Built-in WI-FI interface. For wireless connection (through access point) to the company computer system.
OBRFUSB-2 (S2) External 868 MHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 70m indoors, 150m outdoors. 50 configurable channels. (OBRFUSB-1 must be combined with another radio module).
RFITR-1 (S2) Built-in 868 MHz radiofrequency module. Max. functioning distance in appropriate environmental and installation conditions: 70m indoors, 150m outdoors. Up to 50 configurable channels.
DF485 (S1) RS485 bidirectional port for DFW series.
DAC16O (S1) Built-in analog output, 0-4/20 mA, 0-10VdC (cable gland excluded).
NOTE: For 3590, only with IOEXPB optional board.
ALMEM (S1) Alibi memory (fiscal memory, max 120.000 weighs) for approved transmission of the weight to PC/PLC or data recording on MMC/USB. Real time clock integrated for print of the date/time.
BLTH (S1) Built-in bluetooth interface. For wireless connection to the portable PC or PDA. Weighing app downloadable from Google Play.
ETHD (S2) Built-in Ethernet interface. Speed from 10 to 100 Mbps, TCP, UDP, IP, ARP, ICMP, Ethernet Mac protocols.
Connection cables
  Code Description
ETHCBRJ (S1) Ethernet cable, l=1,5m. Made up of fairlead, for connection between indicator and PC network.
RSCBKRPC RS232/C serial cable - DB9/DB9 - l=1,5m.
Weight repeaters
  Code Description
DGT100R (S2) Weight repeater with 100mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure.
Keyboard protection cover
  Code Description
CVRXP Kit of 10 moulded protective covers in transparent plastic. For indicator DFWXP or 3590EXP with ABS case.
Remote control
  Code Description
DFTL12-1 (S1) 19-keys remote control and infrared receiver kit (max 8m).
TLR-1 (S2) Radio frequency remote control and receiver. 433MHz, with 6 key, for use up to 50 m of distance, in appropriate environmental conditions.
Weight repeater software
  Code Description
MSTSLV Program for using the indicator as a repeater. It must be combined with the DFW and DGT weight indicators.
Other options
  Code Description
TECMAN Printed technical manual. NET PRICE. (Free, if downloaded from the web).
UMAN Printed user manual. NET PRICE. (Free, if downloaded from the web and available in the CD, fitted with the product).

 AXLE WEIGHING SYSTEM INSTALLATION:


EXAMPLE OF WIRELESS VEHICLE WEIGHING SYSTEMS WITH VARIOUS INDEPENDENT PLATFORMS

.
