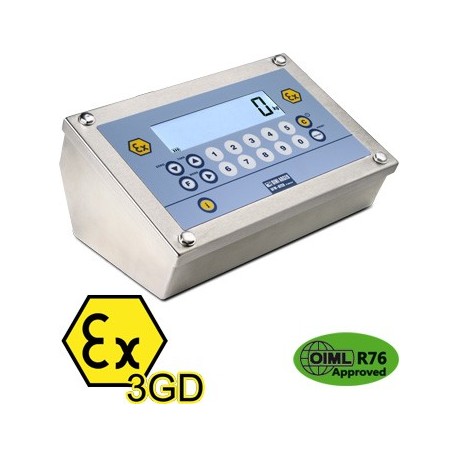

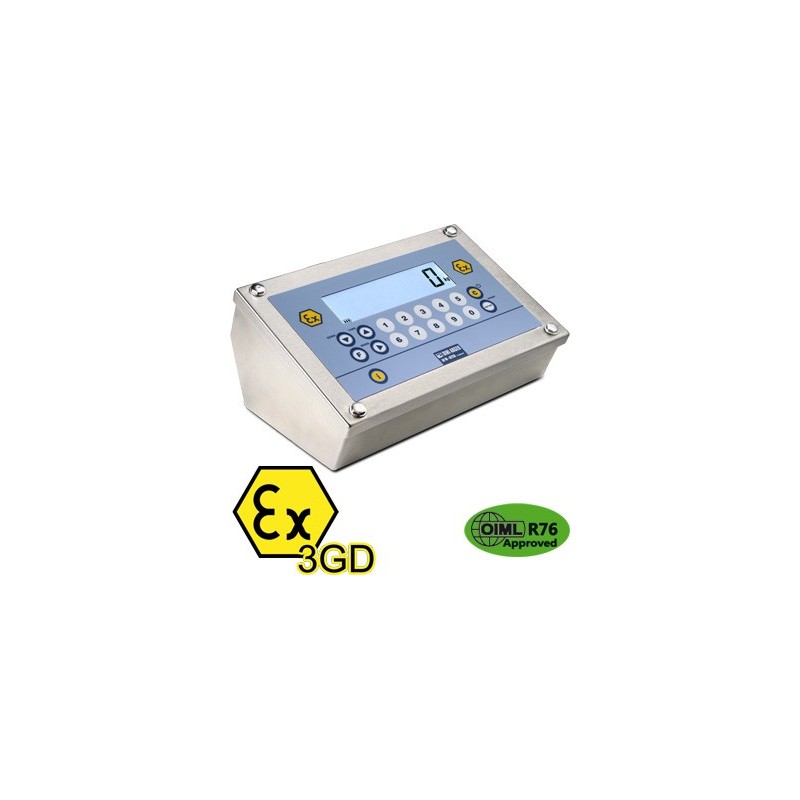

Indicator Cantarire DFW Atex 3GD

New product

Indicator Cantarire DFW Atex 3GD, indicator greutate pt. zona 22 si atex 2.

Producator: Dini Argeo.

Cerere oferta

More details

Informații

.

MAIN FEATURES
  • Waterproof 17-key functional keypad.
  • Backlit LCD display with 6 25-mm high contrast digits and with indication of active functions.
  • Satined IP68 stainless steel case.
  • Suitable for use on the table, or wall.
  • Dimensions: 264x174x115mm.
  • Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.
  • Up to 800,000 displayable divisions for internal factory use.
  • Up to 8 signal linearization points with DINITOOLS (3 from keypad).
  • Internal resolution up to 3.000.000 points.
  • A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.
  • Board protection case inside the box.
  • Digital calibration and set-up from keyboard.
  • Instrument management & configuration from PC with DINITOOLS.
  • 4 channels (for single weighing system).
  • Power supply:
    DFWATEX3GD: through 110-240Vac internal power adapter;
    DFWATEX3GDB: through optional external battery (BP6ESTATEX3GD code), rechargeable in safe area.
  • Connection with up to 8 load cells with 350 Ohm input resistance.
 MAIN CERTIFICATIONS
  • EC Type Approval (EN45501)
  • OIML R76
 I/O SECTION
  • RS232/C port configurable for connection to printer/labeller in safe zone.
  • RS232/C (or optionally RS485) bi-directional port configurable for PC, PLC, additional remote display, in safe zone.
 FUNCTIONS
  • KEYBOARD:
    Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selectable function command, on/off switching, database of 10 tares, 2 Numeric IDs, keyboard lock, repetition of last printout made.
  • SELECTABLE FUNCTIONS:
    - High Resolution Weighing x 10.
    - Net/Gross or lb/kg conversion.
    - Accumulation.
    - Formula weighing.
    - +/- Checkweighing.
    - Percentage weighing.
    - Approved transmission of the weight to PC/PLC (with Alibi memory ALMEM option).
    - Counting(Max. resolution of 1.500.000 divisions).
    - In/Out Truck weighing.
    - Hold.
    - Set Point Control (with DFIO option).
 OPTIONS ONLY AVAILABLE AT TIME OF ORDER
  • Real time clock.
  • Alibi memory with real time clock.
  • Board module with 2 inputs + 2 setpoints (up to 2 connectable boards).
  • RS485 interface.
  • Ethernet interface.
  • 0-10 or from 0 to 20mA analogue output with 16bit D/A converter.
  • 24 Vdc power supply (ask for price estimate).

    TAKE NOTE:
    All the cables must be installed and protected according to the standards for electrical equipment.
Available versions
  Code Description
DFWATEX3GD IP68 stainless steel, ATEX 3GD indicator with internal power adapter. 17-key keypad, LCD backlit display, and standard weighing programme. Protection: ATEX II 3G Ex nR IIC T6 Gc X for gases and ATEX II 3D Ex tc IIIC T130°C Dc IP68 X for dust. Complete with manual and ATEX CE Conformity declaration, available in EN, DE, FR, and IT.
DFWATEX3GDB ATEX 3GD indicator, to be combined always with BP6ESTATEX3GD option. IP68 stainless steel case, 17-key keypad, LCD backlit display, and standard weighing programme. Protection: ATEX II 3G Ex nR IIC T6 Gc X for gases and ATEX II 3D Ex tc IIIC T130°C Dc IP68 X for dust. Complete with manual and ATEX CE Conformity declaration, available in EN, DE, FR, and IT.
Options only available at time of order
  Code Description
DCATEX3GD Declaration of ATEX conformity of whole. Ex II 3GD IIC T6 T130°C X system, with relative label of whole system, for Dini Argeo ATEX weight indicator connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). ATEX CONFORMITY DECLARATIONS will be supplied in English.
KCEM Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination to a Dini Argeo indicator.
SWM WeiMonitor PC program for monitoring and recording weighs in real time, from one or more scales.
BP6ESTATEX3GD IP65 stainless steel, external ATEX battery pack, for 2 and 22 zones. For Dini Argeo ATEX 3GD instruments. ATTENTION: rechargeable in safe zone only, connectable and disconnectable from the weighing system also in hazardous area.
BP6CB Battery charger for safe area, for BP6ESTATEX3GD ATEX battery.
OBRF3GD-2 868 MHz radio frequency module for ATEX 2 & 22 zones. ABS IP66 case, 3 m shielded cable, and power supply from indicator. Protection: ATEX II 3G Ex nA IIC T6 Gc X for gases and ATEX II 3D Ex tc IIIC T125°C Dc IP66 X for dust. Max. functioning distance, in appropriate environmental and installation conditions: 70m indoors, 150m outdoors. 50 configurable channels.
DFCLK (S1) Real time clock for printing/displaying of the date and time.
DFIO3GD ATEX 3GD built-in 2 IN/2 OUT interface (not combinable with ALMEMATEX).
ALMEM (S1) Alibi memory (fiscal memory, max 120.000 weighs) for approved transmission of the weight to PC/PLC or data recording on MMC/USB. Real time clock integrated for print of the date/time.
ETHD (S2) Built-in Ethernet interface. Speed from 10 to 100 Mbps, TCP, UDP, IP, ARP, ICMP, Ethernet Mac protocols.
DF485 (S1) RS485 bidirectional port for DFW series.
DAC16O (S1) Built-in analog output, 0-4/20 mA, 0-10VdC (cable gland excluded).
NOTE: For 3590, only with IOEXPB optional board.
TECSUP Technical assistance by telephone. NET hourly price.
Accessories
  Code Description
CSP38I-1 Stainless steel column 450x450mm, h=917mm, Ø 38mm. For the indicators of the DINI ARGEO and SCALE HOUSE range.
CSP38D Stainless steel column 350x350mm, h=750mm. Painted steel base, for the indicators of the DINI ARGEO and SCALE HOUSE range.
STFI-1 Stainless steel fixing bracket. For mounting the weight indicator on wall.
STFA12 Stainless steel bracket for mounting the ATEX battery on column. Compatible with "DFWBP76ATEXC" and "BP6ESTATEX3GD".
DGT60R (S2) Weight repeater with 60 mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure, and configurable protocol.
LP542S (S2) Direct termal labeller.

.
