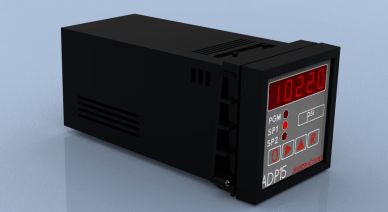

ADP15-POTENTIOMETER Potentiometer Input Digital Indicator and Controller

Cerere oferta

More details

Informații

ADP15-POTENTIOMETER Potentiometer Input Digital Indicator and Controller

Features :

  • Microprocessor based design
  • Full calibration & programming via keypad & communications import
  • 4½ digit scaling
  • Isolated inputs & outputs
  • 3 year guarantee
  • PID Control
  • Any potentiometer
  • Angular measurement
  • Position measurement

The ADP15-POTENTIOMETER range of products is very versatile, accepting a wide range of different signal input types and ranges.

The ADP15-POTENTIOMETER's flexibility makes it the first choice for many control system designers. Supporting products like PC software, printers, and sensors, means most customers can deal with a single supplier.

Outputs include:-

Analogue voltage and current, Industry standard digital communications, Relays, Printer Drive

Options and Accessories include:

Panel mounting via DIN rail mounting
Power supplies for 110/230 V AC or 9-32V DC
Communications for Printer, PLC or PC

The ADP15-POTENTIOMETER can be supplied as part of a system, and will interface directly with LCM Systems potentiometric sensors, including the PD13. Please contact our technical department to discuss your application.

Specification :

Input Type

Input Ranges

Order code
Potentiometer Any value in the range 100R to 10K RL

Outputs

Details

Order code
0 to 10V   V4
4-20mA   A3

Other Information
Accuracy Typical ± 0.08% of output, ± 0.08%FSD
Resolution As display resolution, max 15 bits
Calibration By 15-turn pre sets for gain and offset
Inversion By keypad value
Isolation ±130V RMS or DC max to analogue input or to any other port
Ranging Fully keypad scalable over desired display range
PID Power level, when selected = 12 bit resolution output

Communications Port

Details

Order code
RS485/232 RS485 - For up to 32 instruments on 1 bus, 4 wire
RS232 ­ printer or direct connection to 1 device, 3 wire		 COM 1

Other Information
Baud rates 300, 600, 1200, 2400, 4800, 9600 (19200 MANTRABUS only)
Electrical isolation ±130V RMS or DC max to analogue input or any other port
Formats MODBUS RTU, MANTRABUS and printer output formats

Alarm/Control

Outputs

Details Order code
DPCO 1 relay on SP1 R2
SPCO 2 relays on SP1& 2 R3

Other Information
Relays 230V at 5A AC resistive
Isolation ±130V RMS
Keypad Programmable
values and options		 Hysteresis, Latching, Output Inversion, Delay Times, PID
Time Proportioning.

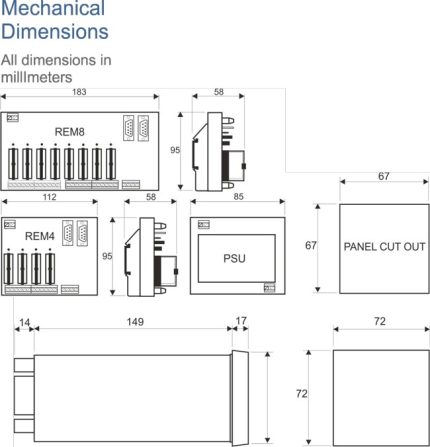

16 relay option can be supplied on external DIN rail modules (10A SPCO). Available for DC, AC, Temperature, Strain Gauge & Potentiometer inputs, ask for ADP15-SP16

Power Supplies

Details

Order code
240 220V-230V AC 50-60Hz 10W 240
110 110V-120V AC 50-60Hz 10W 110
12 & 24V 9-32V DC 10W isolated 12/24

Mounting Type

Order code
Front Panel P
Din Rail Adaptor D

Communication Port CP Operation
All ADP15 display data can be accessed via the communications port along with relay, PID power and EEPROM status.
All ADP15 user configurable data can be changed including EEPROM enable/disable and relay reset (ADP15 address code cannot be changed).

Other Options & Accessories
One pass calibration
20mA PC Communications Interface (IF25)
VisualLink PC SCADA Software
Analogue Totaliser (Integrator)

Base ADP15
Input Filter Programmable to average up to 64 display updates.
Displays 7 segment LED 4.5 digit 10mm.3 x 3mm LED's 2 for relay status, 1 for program and hold indication.
Update Rate Up to 10 updates per seconds

Controls
4 membrane panel keys Scroll key to view/update parameter.
  Digit select key.
  Digit increment key.
  Reset key.
  Keypad disable by internal links behind front panel.
  Hold function by digit select key when in input mode.

Data Retention/Protection
Retention 10 years for set up values, minimum of 100,000 write cycle
  Protection of data and function(s) Watchdog timer giving repeat auto resets
  Impending power detection and hold off.
  Keypad security, and time out.

CE & Environmental
Storage temperature -20 to +70ºC
Operating temperature -10 to 50°C
Relative humidity 95% maximum non condensing
Safety/Low Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC

Physical

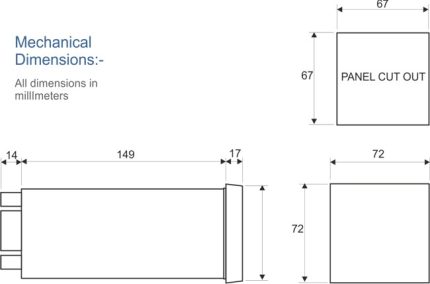

Case Dimensions DIN 72 x 72 x 163mm (excluding mounting terminal)
Case Material Grey Noryl, flame retardant
Weight 750 grams
Terminals 2.5mm, saddle field terminals
Accessibility All electronics removable through front panel leaving field wiring and case in situ.
