- Fitted with 4 shear-beam OIML approved load cells each with 350 Ohm input resistance with protection against dust

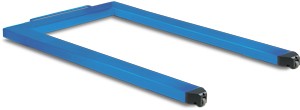

- Painted steel structure, oven-fire painted RAL 5007 blue.
- Adjustable, shock-proof jointed feet, and level; also has 2 wheels and handles for moving it.
- 5/15 Vdc power supply.
- Shielded 5m long cable with connectors for connection to the indicator.
|
|
|
|

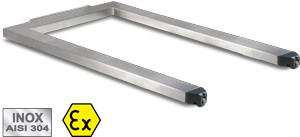

STAINLESS STEEL VERSION |
|
|
- Extremely low profile, only 75mm high.
- Self-centering articulated feet completely in stainless steel, non-slip, and anti-vibration, adjustable in height.
- Strucutre, mechanics, and trinkets in AISI304, and IP68 stainless steel load cells, also ATEX.
|
|
|
|
OPTIONS ONLY AVAILABLE AT TIME OF ORDER |
|
|
- Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval (with indicators of our production).
- High resolution model for internal factory use.
|
|
|
|
OPTIONS FOR ATEX VERSION (only for models in STAINLESS steel) |
|
|
- CCATEX: ATEX certificate for each load cell.
- JB4QAP: ATEX certified junction box.
- DCATEXMECH: Declaration of conformity of the whole system composed of PLATFORM + JUNCTION BOX + LOAD CELLS (only if the platform is ordered without the weight indicator; otherwise, refer to the certifications available for the indicator to which it will be connected).
 |
WARNING
With ATEX weighing systems it is necessary to use the STAINLESS STEEL version, which will be supplied without plastic supports and wheels. |
|
Code |
Nr. of cells |
Max
(kg) |
d
(g) |
CE-M*
3000e (g) |
CE-M*
2x3000e (g) |
d* HR
(g) |
| PW6 |
4x500kg |
600 |
100 |
200 |
100-200 |
50 |
| PW15 |
4x500kg |
1500 |
200 |
500 |
200-500 |
100 |
| PW30 |
4x1000kg |
3000 |
500 |
1000 |
500-1000 |
-- |
PWI6  |
4x500kg |
600 |
100 |
200 |
100-200 |
50 |
| PWI15 |
4x500kg |
1500 |
200 |
500 |
200-500 |
100 |
| PWI30 |
4x1000kg |
3000 |
500 |
1000 |
500-1000 |
-- |
(*) These divisions are obtainable only with the relative options
Calibration service with weight indicator
| |
Code |
Description |
|
| |
DINICAL2 |
Calibration from 31 to 1500kg with Dini Argeo indicator. NET PRICE. |
|
| |
DINICAL3 |
Calibration from 1501 to 6000kg with Dini Argeo indicator. NET PRICE. |
|
Legal for trade approval
, class III or IIII, with Dini Argeo indicator (only at time of order)
| |
Code |
Description |
|
 |
ECEM |
CE-M Single platform legal for trade approval. |
|
|
ECEM2 |
CE-M Single platform legal for trade dual range approval. |
|
High resolution (d HR)(only at time of order)
| |
Code |
Description |
|
| |
EHR |
High resolution model for internal factory use. |
|
Floor columns
| |
Code |
Description |
|
 |
CSP38I-1 |
Stainless steel column 450x450mm, h=917mm, Ø 38mm. For the indicators of the DINI ARGEO and SCALE HOUSE range. |
|
 |
CSP38D |
Stainless steel column 350x350mm, h=750mm. Painted steel base, for the indicators of the DINI ARGEO and SCALE HOUSE range. |
|
 |
KWR10 |
Kit of 4 rubber wheels and galvanized steel frame for CSP column. A pair of idler wheels and a pair with brakes. |
|
IP68 protection
| |
Code |
Description |
|
 |
ETIP68 |
IP68 connection for 4-cell platforms, fitted with IP68 connectors, for hermetic system. |
|
Protection for junction box/electronic circuits
| |
Code |
Description |
|
 |
GELBOX |
Anti condensation, insulating, and sealing gel. Useful for the protection of the electronic circuits of the weighing system, even in conditions of prolonged immersions in time. Pack of 300ml. |
|
Options for ATEX version
| |
Code |
Description |
|
 |
CCATEX |
ATEX certificate for each load cell. Categories: ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga and ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65. Complete with manual and ATEX CE CONFORMITY DECLARATIONS (available in EN, DE, FR and IT). |
|
| |
JB4QAP |
Junction and equalisation box for pallet-weighing scales, usable in hazardous areas ATEX. Protection modes: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dusts. Complete with manual and ATEX CE CONFORMITY DECLARATIONS (available in EN, DE, FR and IT). |
|
|
DCATEXMECH |
Declaration of ATEX conformity of whole, Ex II 2GD X system with relative whole system label, for mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). NOTE: option to order only if the platform is ordered without the indicator. ATEX CONFORMITY DECLARATIONS will be supplied in English. |
|
Calibration service with Dini Argeo indicator (only at time of order)
| |
Code |
Description |
|
 |
CT6 |
ISO 17025 calibration certificate from 301 to 1500 kg. For precision and industrial scales, crane scales. |
|
|
CT7 |
ISO 17025 calibration certificate from 1501 to 3000 kg. For precision and industrial scales, crane scales. |
.
