Sistem automat de dozare a mai multor produse Mărește

Sistem automat de dozare a mai multor produse

New product

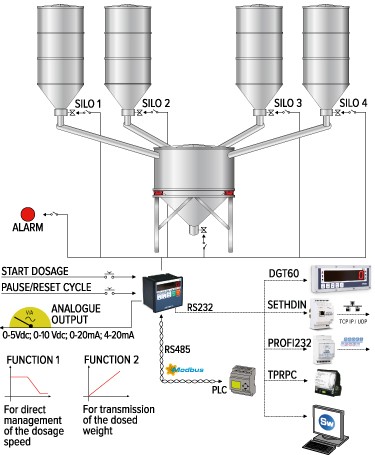

Sistem automat de dozare a mai multor produse prin cantarire succesiva.

Producator: Dini  Argeo .

Cerere oferta

More details

Informații

.

DATABASES
  • Database of 16 selectable products/phases which may be:
    - Automatic dosage;
    - Manual dosage    , with possibility of managing a control light;
    - Complete or partial unloading;
    - Fractioned unloading    , for dividing all the dosed material in equal quantities;
    - Timer, for enabling mixers, burners, or stirrers for a preestablished time period;
    - Pause, for allowing the manual operations of the operator;
    - Manual weight, for adding pre-weighed quantities to the dosage.
  • Database of 15 formulas, each one can contain:
    - up to 8 products/phases with target, speed change threshold, flight, +/- tolerance;
    - minimum tare and maximum tare values.
 KEYBOARD FUNCTIONS
  • START / RESTART dosage, PAUSE / RESET cycle and introduction / selection formula.
  • Automatic recalculation of the formula targets, by entering the total weight to be dosed.
  • Quick introduction and selection of the dosage data, in the numeric keyboard models.
 I/O FUNCTIONS
  • Serial communication protocol for programming the formulas, the products and managing the cycle.
  • START / RESTART dosage, PAUSE / RESET cycle through external inputs.
  • Formula selection through 2 external inputs (only for models with 4 inputs).
  • Dual dosage speed (approximate and fine), through any available contacts or analogue output (in the “AN” models).
  • One may assign to each product/phase a direct contact, for "fine" dosage, or a binary combination of contacts to codify up to 15 products/phases (only for models with 6 outputs).
  • “Fine” dosage contact active either constantly or intermittently (jogging).
  • Indication of weight within tolerance, out of tolerance, finished dosage, or alarm through any dedicated contacts
  • Analogue output (only for "AN" models) proportional to the weight or to the dosage speed.
 DOSAGE FUNCTIONS
  • Checking the presence of the tare at the dosage start.
  • Automatic printing of the dosage data.
  • Storage and printing of the consumptions. Printouts may be quickly recalled from the keyboard.
  • Automatic correction of the flight weight.
  • Repetitions of the programmable dosage cycles; infinite cycle function.
  • Tolerance test on the dosed weight, with guided correction on display.
  • Check of the maximum dosage time.
  • Alarms indication on display.
Available indicators en multi-product dosage version
  Code Description

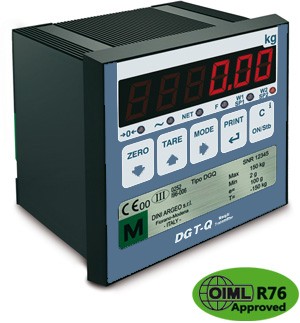

DGTQF Microcontroller for dosage, with 2 IN and 6 OUT. 5-key keypad and LED display.
DGTQFAN Microcontroller for dosage, with 2 IN, 6 OUT, analogue output. 5-key keypad and LED display.
DGTPF Microcontroller for dosage with 4 IN and 6 OUT. 5-key keypad and LED display.
DGTPFAN Microcontroller for dosage with 4 IN, 6 OUT and analogue output. 5-key keypad and LED display.
DGTPKFV2 Indicator for dosage, with 4 IN and 6 OUT. Painted steel case for table or panel mounting, 20-key keypad and LED display.
DGTPKFANV2 Indicator for dosage, with 4 IN, 6 OUT, analog output. Painted steel case for table or panel mounting, 20-key keypad, LED display, and standard weighing program.
DFWATEX2GDF ATEX 2GD indicator for single and multi product dosage. IP68 stainless stell case, 17-key keypad and LCD display. Protection mode: ATEX II 2G Ex ia IIC T4 Gb for gases and ATEX II 2D Ex tb IIIC T197°C Db IP65 for dust. Complete with manual and DECLARATION OF CONFORMITY. To be combined always with the PW200XRDxxx series' power adapter and PW200IO option. The manuals and ATEX CE CONFORMITY DECLARATIONS are available in DE, EN, FR, and IT.

DGTQF DGTPF DGTPKF DFWATEX2GDF
(ATEX ZONE 1 & 21)
>> Technical data sheet >> Technical data sheet >> Technical data sheet >> Technical data sheet

.
