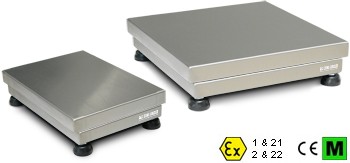

Platforma cantarire TNE Mărește

Platforma cantarire TNE

New product

Platforma cantarire TNE, platforme metalice inox cu o singura celula IP67.

Producator: Dini Argeo.

Cerere oferta

More details

Informații

.

MAIN FEATURES
  • Functions with an approved “single point” STAINLESS STEEL load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards.
  • Structure with tubulars, mechanics, trinkets and satined steel loading surface in AISI304 stainless steel.
  • Fitted with adjustable STAINLESS steel feet with plastic resting surface and level.
  • Up to 15 Vdc power supply.
  • Shielded 3m connection cable with connectors for connection to the indicator.
 OPTIONS ONLY AVAILABLE AT TIME OF ORDER
  • Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval.
  • High resolution models for internal factory use.
 OPTIONS FOR ATEX VERSION
  • CCATEX: ATEX certificate for each load cell.
  • DCATEXMECH: Declaration of conformity of the whole system composed of PLATFORM + JUNCTION BOX + LOAD CELLS (only if the platform is ordered without the weight indicator; otherwise, refer to the certifications available for the indicator to which it will be connected).
Available versions

Code		 l x w x h
(mm)		 Max
(kg)		 d
(g)		 CE-M*
3000e (g)		 CE-M*
2x3000e (g)		 d* HR
(g)
 TCNE30 500x500x140 30 5 10 -- 2
 TCNE60 500x500x140 60 10 20 10-20 5
 TCNE150 500x500x140 150 20 50 20-50 10
 TLNE60 500x600x150 60 10 20 10-20 5
 TLNE150 500x600x150 150 20 50 20-50 10
 TLNE300 500x600x150 300 50 100 50-100 20
 TGNE150 700x700x165 150 20 50 -- 10
 TGNE300 700x700x165 300 50 100 50-100 20
 TGNE600 700x700x165 600 100 200 100-200 50

 (*) These divisions are obtainable only with the relative options.

Calibration service with weight indicator
  Code Description
DINICAL1 Calibration up to 30kg with Dini Argeo indicator. NET PRICE.
DINICAL2 Calibration from 31 to 1500kg with Dini Argeo indicator. NET PRICE.
High resolution (d HR)(only at time of order)
  Code Description
THR High Resolution (HR) model.
Legal for trade approval , class III or IIII, with Dini Argeo indicator (only at time of order)
  Code Description
ECEM CE-M Single platform legal for trade approval.
ECEM2 CE-M Single platform legal for trade dual range approval.
Options for ATEX version
  Code Description
CCATEX ATEX certificate for each load cell. Categories: ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga and ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65. Complete with manual and ATEX CE CONFORMITY DECLARATIONS (available in EN, DE, FR and IT).
DCATEXMECH Declaration of ATEX conformity of whole, Ex II 2GD X system with relative whole system label, for mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). NOTE: option to order only if the platform is ordered without the indicator. ATEX CONFORMITY DECLARATIONS will be supplied in English.
IP68 protection
  Code Description
TIP68 IP68 connection for single cell platforms, fitted with IP68 connector, for hermetic system.
Attached columns
  Code Description
TMNCI Indicator support stand in stainless steel, h= 460 mm, for mounting attached to 400x500 mm and 500x500 mm platforms.
TLNCI Indicator support stand in stainless steel, h= 720 mm, for mounting attached to 500x600 mm and 600x600 mm platforms.
Floor columns
  Code Description
CSP38I-1 Stainless steel column 450x450mm, h=917mm, Ø 38mm. For the indicators of the DINI ARGEO and SCALE HOUSE range.
CSP38D Stainless steel column 350x350mm, h=750mm. Painted steel base, for the indicators of the DINI ARGEO and SCALE HOUSE range.
Charts for mobile weighing applications
  Code Description
TB60BI Stainless steel cart with low supporting surface, for 500x500 mm platforms. Height of the loading surface: 260 mm.
TB300I Stainless steel cart with low supporting surface, for 500x600 mm and 600x600 mm platforms. Height of the loading surface: 270 mm.
TA300I Stainless steel cart with high supporting surface, for 500x600 mm and 600x600 mm platforms. Height of the loading surface: 650 mm.
TPBEI Stainless steel plate for scale or labeller support, for TA or TB carts.
Roller unit
  Code Description
RF50X65I Stainless steel roller unit with PVC ø 40 idle rollers and 75 mm pitch, on stainless steel frame. Dimensions 500x650 mm.
Calibration service with Dini Argeo indicator (only at time of order)
  Code Description
CT4 ISO 17025 calibration certificate from 6 to 60 kg. For precision and industrial scales, crane scales.
CT5 ISO 17025 calibration certificate from 61 to 300 kg. For precision and industrial scales, crane scales.
CT6 ISO 17025 calibration certificate from 301 to 1500 kg. For precision and industrial scales, crane scales.


Areas which may be perforated          Areas which may not be perforated
MOD. A B C D E F G L
TCN 500 500 140-155 400 437 25-40 374 160
TLN 500 600 150-165 400 535 25-40 474 180
TGN 700 700 165-180 600 635 25-40 574 260

NOTE: ALL THE MEASUREMENTS ARE IN MM AND MAY BE MODIFIED WITHOUT PRIOR NOTICE

.
